Nanjing Jiangbei Bonded Logistics Center(Type B) Project

Short Description:

Steel structure logistics warehouse project in 2019,including A1-A4 warehouses,B1-B2warehouses and 1&2 inspection platforms,with a total construction area of 47856.8m².

Product Detail

Product Tags

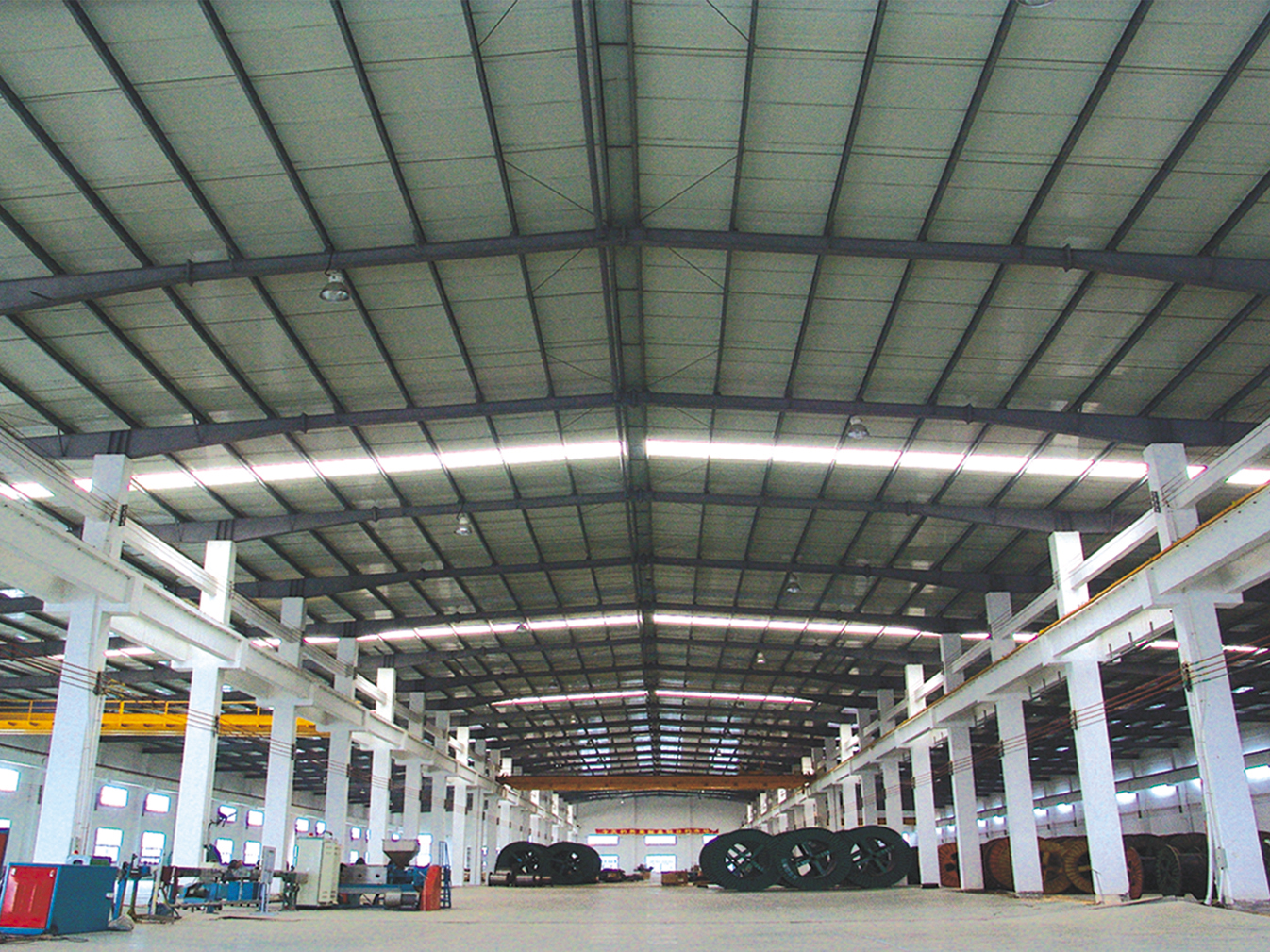

Warehouse Steel Structure

What is steel structure warehouse? The industrial warehouse is done with a series of structural steel, including steel columns, steel beams, purlin and so on. These main components constitute the load-bearing structure of the warehouse.

Our prefabricated steel structure warehouses are building solutions for storage or industrial use.We can offer a comprehensive design or simple steel storage building to assist on your project.

Warehouse Design

We supply the structural steel warehouse design, and depending on your specific applications and specifications, If you can provide the following information in your inquiry, it will be very helpful

1. Location (where will be built?) _____country, area

2. Size:Length*width*height _____mm*_____mm*_____mm

3. Wind load (max.Wind speed) _____kn/m2, _____km/h, _____m/s

4. Snow load (max.Snow height) _____kn/m2, _____mm

5. Anti-earthquake _____level

6. Brickwall needed or not If yes, 1.2m high or 1.5m high

7. Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested;

8. Crane needed or not If yes, _____units, max.Lifting weight____tons;Max.Lifting height _____m

Basic parameter



Main Components

Base Steel foundation anchor bolt
Main frame Hot Rolled or Welded H section Steel
Material Q235B,Q355B or others as per request
Purlin C/Z purlin
Bracing X-type or other type,angle or round pipe
Bolt Plain or high strength bolt
Roof&wall EPS/Rockwool/PU sandwich/Corrugated steel sheet
Door Rolled up door or sliding door
Window Aluminium or PVC window
Surface coating Anti-rust paint or Hot dip galvanize
Crane 5MT,10MT,15MT or more
Structural diagram

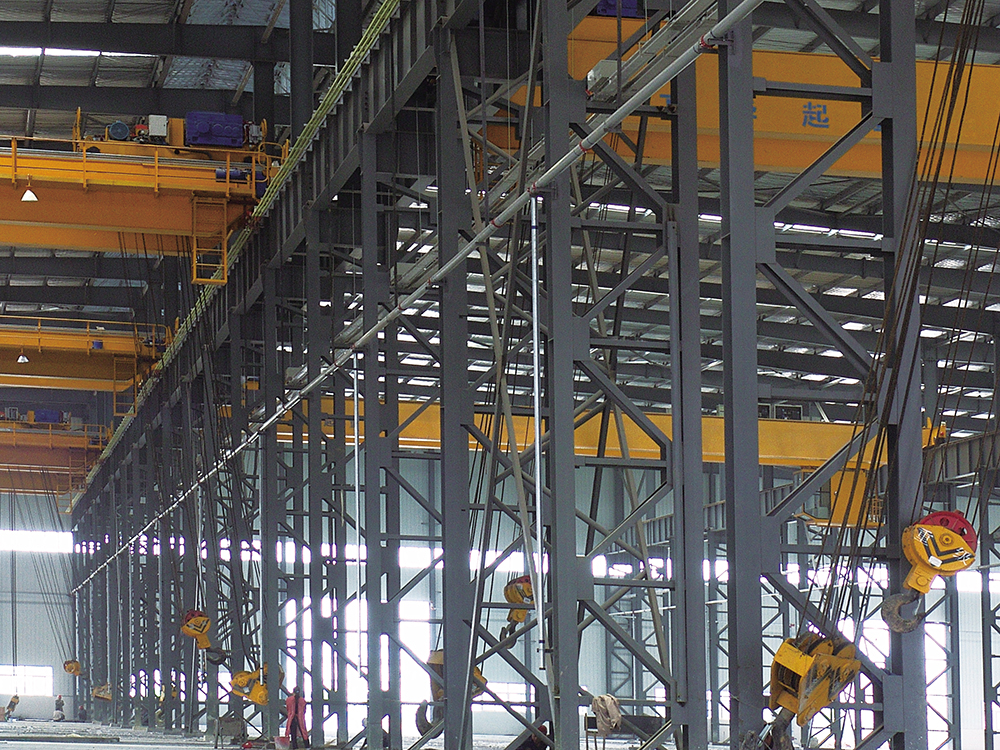

Project Achievement

Shenzhen Jin Longyu Group Conductor Workshop

Henan West Weihua Factory Heavy-duty Steel Structure Workshop

Zhengzhou Railways Bureau Maintenancery Machinery Factory

Jakarta-Bandung High Speed Railway Joint Workshop Project
