Jakarta-Bandung High Speed Railway Joint Workshop Project

Short Description:

This project is exported to Indonesia,including 503,505,506,507,511 series workshop construction


Product Detail

Product Tags


Workshop Steel Structure

Steel structure workshop is the type of building formed by main framework which mainly consists of steel column, steel beam and purlin, thus the steel structure accounts for the major load-bearing member of steel workshop building.

Our experience has seen us growing in the steel fabrication.Every building comes with all the necessary components, including the main steel frame, bracing system, purlin and wall girt, bolts, screws,accessories etc.We can provide you with everything you need to build industrial, agricultural, and commercial buildings.

Components of Steel Structure Workshop

Jakarta-Bandung High Speed Railway Joint Workshop Project (6)

Components showing

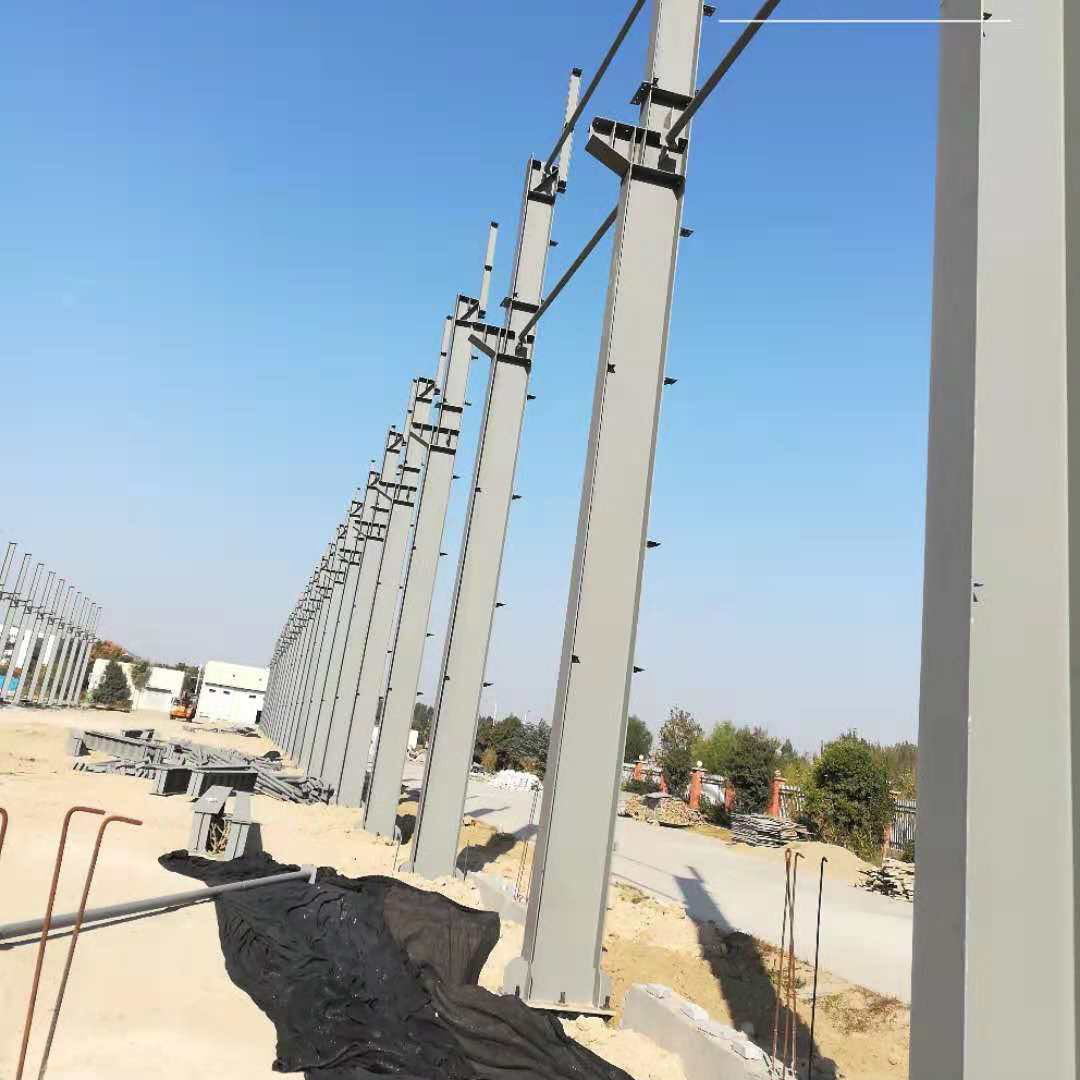

Steel column

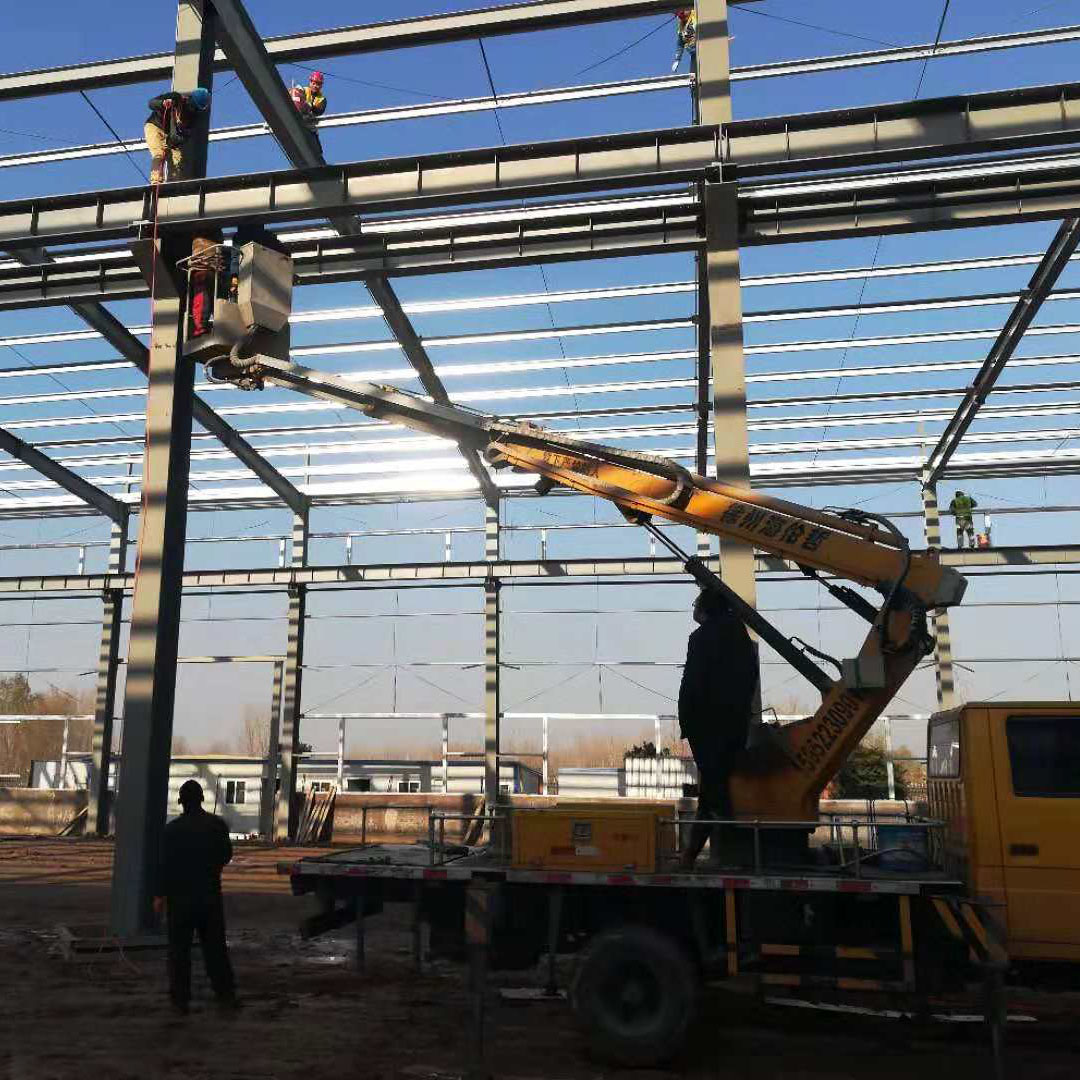

Crane runway girder

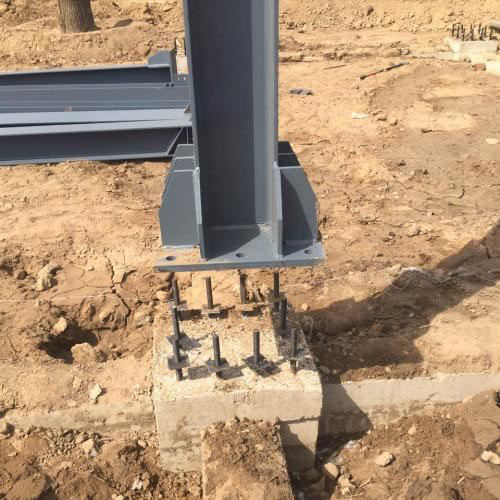

Anchor bolts

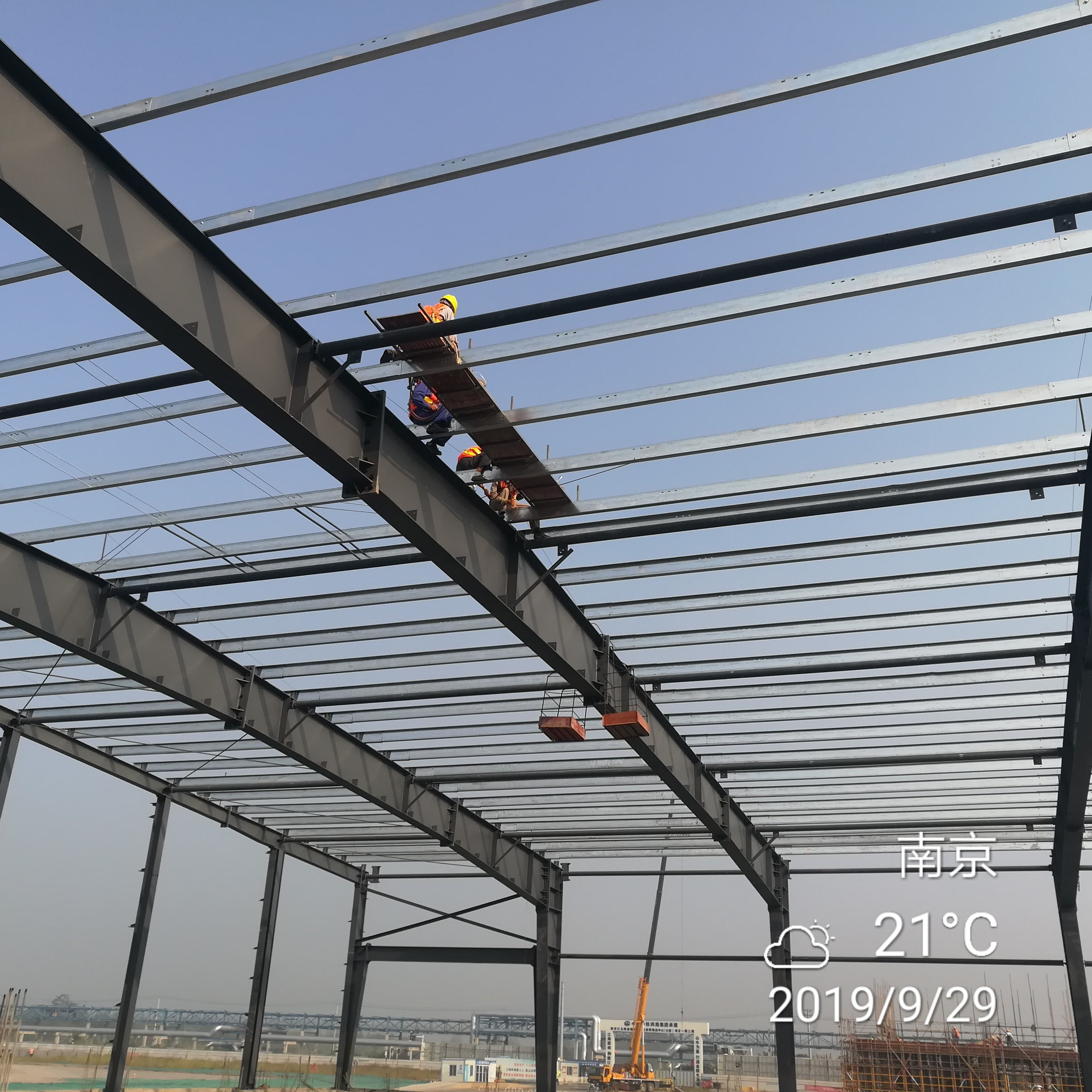

Roof purlin

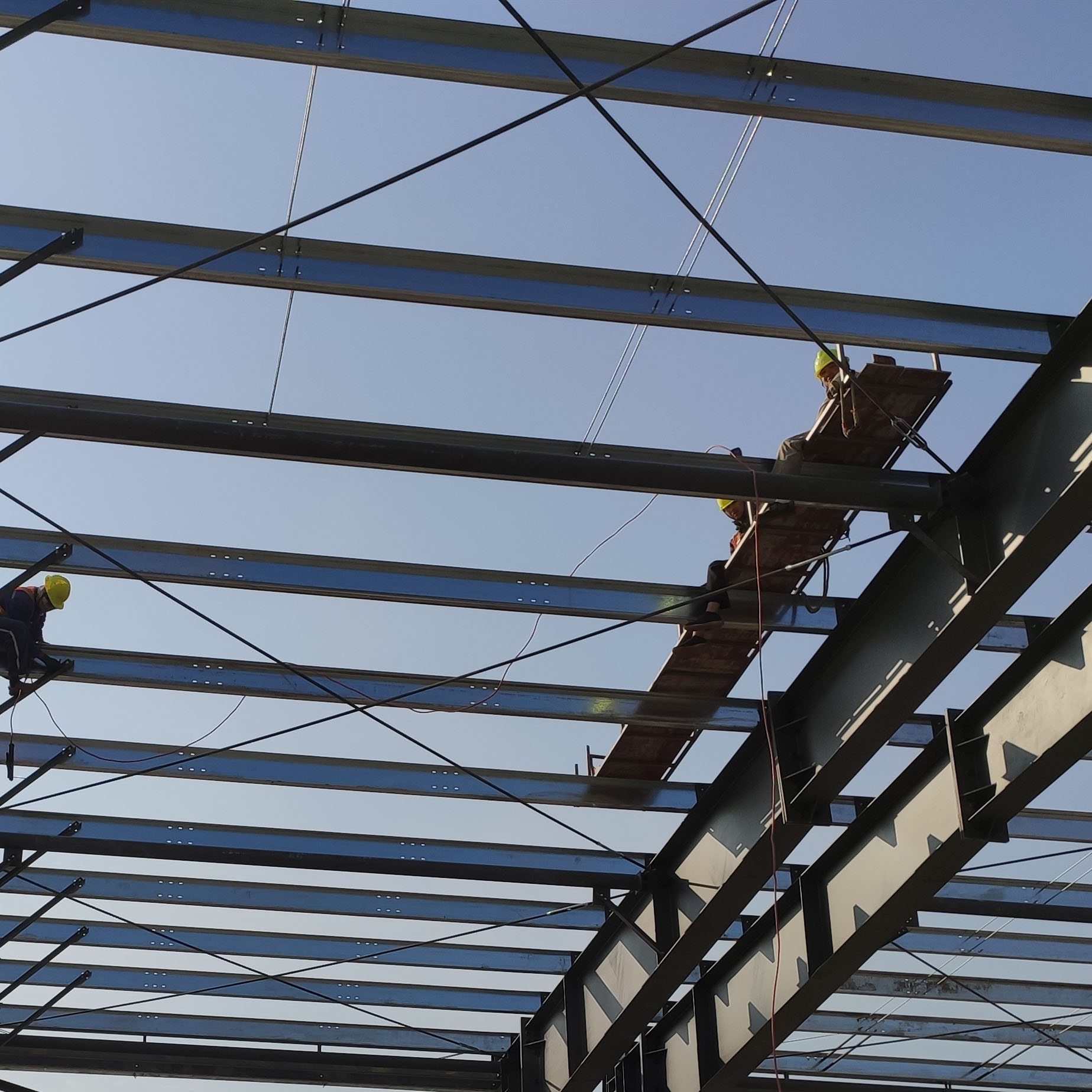

Horizontal bracing

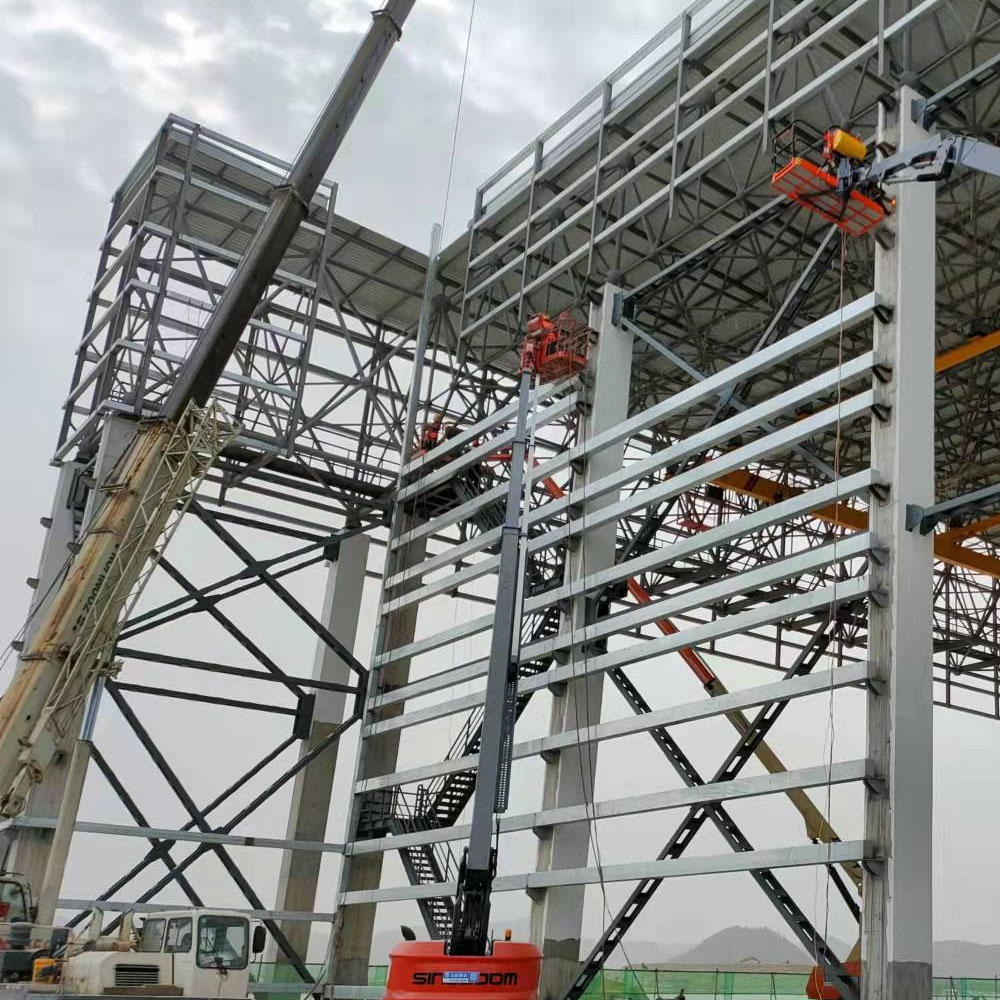

Vertical bracing

If you can provide the following information in your inquiry, it will be very helpful

1. Location (where will be built?) _____country, area

2. Size:Length*width*height _____mm*_____mm*_____mm

3. Wind load (max.Wind speed) _____kn/m2, _____km/h, _____m/s

4. Snow load (max.Snow height) _____kn/m2, _____mm

5. Anti-earthquake _____level

6. Brickwall needed or not If yes, 1.2m high or 1.5m high

7. Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested;

8. Crane needed or not If yes, _____units, max.Lifting weight____tons;Max.Lifting height _____m

Basic parameter for steel structure

Items

Specification

Main Components

Base

Steel foundation anchor bolt

Main frame

Hot Rolled or Welded H section Steel

Material

Q235B,Q355B or others as per request

Purlin

C/Z purlin

Bracing

X-type or other type,angle or round pipe

Bolt

Plain or high strength bolt

Roof&wall

EPS/Rockwool/PU sandwich/Corrugated steel sheet

Door

Rolled up door or sliding door

Window

Aluminium or PVC window

Surface coating

Anti-rust paint or Hot dip galvanize

Crane

5MT,10MT,15MT or more

Project Achievement

Guiyang Steel Structure Airport Hangar

Henan West Weihua Factory Heavy-duty Steel Structure Workshop

Zhengzhou Railways Bureau Maintenancery Machinery Factory

Jakarta-Bandung High Speed Railway Joint Workshop Project

Xuzhou International Academic Exchange Center

Nanjing Jiangbei Bonded Logistics Center(Type B) Project
